CESP IP68 explosion proof LED Filling Station Light With Meanwell HLG Driver

Brand Name : EWIN

Model Number : CES-J100

Certification : CE, LVD, RoHS, VDE

Place of Origin : china

MOQ : 1pcs

Price : 100-400

Payment Terms : T/T,Western Union,Paypal

Supply Ability : 10000m/Month

Delivery Time : 7-10day after receiving your payment

Packaging Details : 1 pcs / 1ctn (professional design and open mold): 120w-150w:Packing dimension : 48x48x26cm (12kg) 40w-80w : Packing dimension : 37x37x23cm (8.5kg )

Light Source : LED

Item Type : Flood Lights

LED Light Source : Bridgelux

Input Voltage(V) : 100-240V AC

Lamp Power(W) : 80

Lamp Luminous Flux(lm) : 120000

Lamp Luminous Efficiency(lm/w) : 100

CRI (Ra>) : 70

Color Temperature(CCT) : Pure White

Beam Angle(°) : 120°

Working Temperature(℃) : -20 - 40

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum Alloy

IP Rating : IP67

LED source : Bridgelux LED

Application : mainly for gas station

Anti explosion report : yes

Warranty : 5 years

Product Size : 400*400*185MM or 200*200*270 mm

Contact Now

CESP IP68 explosion proof LED Filling Station Light With Meanwell HLG Driver

ATEX Explosion Proof light

Key features:
1) Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
2) Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
3) IP 68, highest rating of protection.
4) Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
5) 5 year warranty.
6) Best driver: Meanwell HLG driver.
7) With the fullest anti-explosive certification,including UL844 for North America, ATEX for Europe ,IECEX for International and CNEX for China.

Photometric Design

CESP IP68 explosion proof LED Filling Station Light With Meanwell HLG Driver

Without Reflector :

The Beam Angle will be 120°*120°

With Reflector :

Beam Angle will be 60°*30°

COLOR Temperature : From Range 2500 K - 3000 K ( Warm White )

3000 K - 4500 K ( Nature White )

TO 4500 K - 7000 K ( Cool White )

All be at your Choice ! ! !

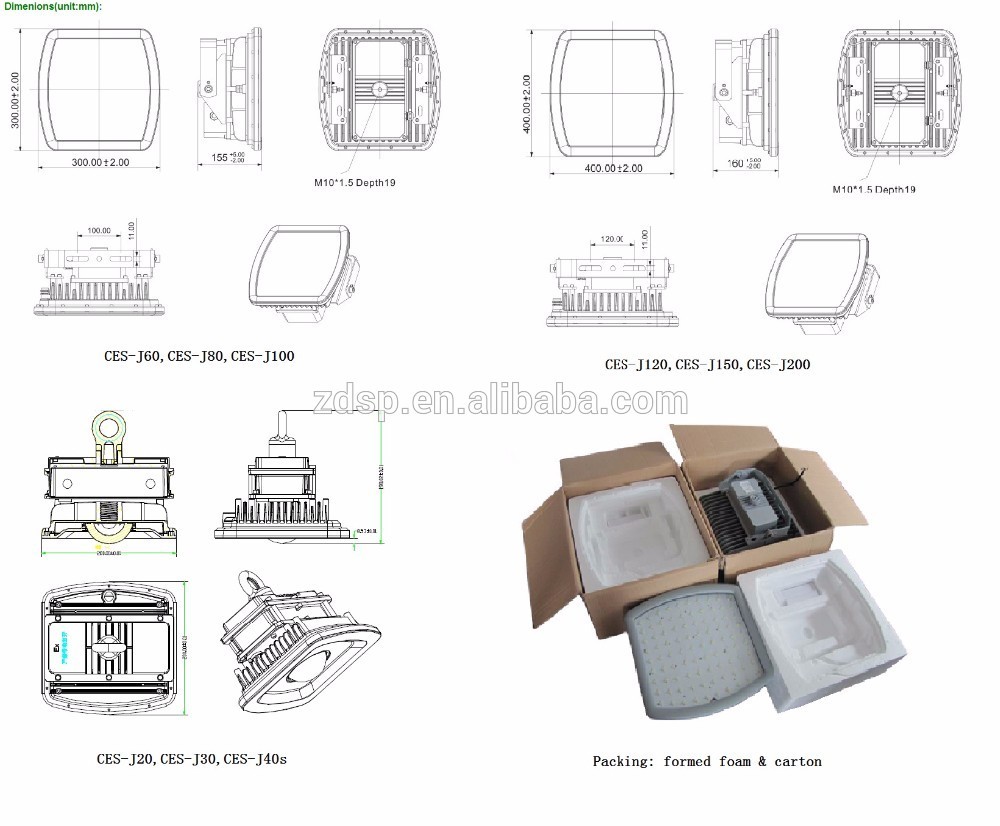

Package Information

Specifications of led Explosion proof light

ITEM Models :	Product Size ( mm )	Packing Size ( mm )	G.W. / N.W. (Kgs)
CES-J20,CES-J30,CES-J40S	200200270mm	360x250x200mm	4.5kgs/4.0kgs
CES-J60, CES-J80, CES-J100	300300175mm	370x370x240mm	8.5kgs/7.5kgs
CES-J120, CES-J150, CES-J200	400400185mm	460x460x240mm	12.5kgs/11.5kgs

Technical Parameters:

Item	40w	60w	80w	100w	120w
Part No.	CES-J40	CES-J60	CES-J80-RF/ CES-J80	CES-J100-RF/ CES-J100	CES-J120-RF/ CES-J120
Input Power(W)	40w	60w	80w	100w	120w
Lamp Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Led Brand	Bridgelux/36pcs	Bridgelux/60pcs	Bridgelux/60pcs	Bridgelux/96pcs	Bridgelux/117pcs
Input Voltage(V)	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Luminous Flux(lm)	3600	5400	7200	9000	10800
Luminous Efficiency (lm/W)	90Lm/W	90Lm/W	90Lm/W	90Lm/W	90Lm/W
CCT(K)	5700-6500K	5700-6500K	5700-6500K	5700-6500K	5700-6500K
Power Factor	98%	98%	98%	98%	98%
THD(%)	<10%	<10%	<10%	<10%	<10%
Working Temperature(℃ )	-40℃ to 50℃	-40℃ to 50℃	-40℃ to 50℃	-40℃ to 50℃	-40℃ to 50℃
Driver	Meanwell	Meanwell	Meanwell	Meanwell	Meanwell
Size(mm)	300300185	300300185	300300185	400400185	400400185
Meas(mm)	370x370x240mm	370x370x240mm	370x370x240mm	460x460x240mm	460x460x240mm
G.W/N.W	8.5kg/7.5kg	8.5kg/7.5kg	8.5kg/7.5kg	12.5kg/11.5kg	12.5kg/11.5kg
Color	Silver Gray	Silver Gray	Silver Gray	Silver Gray	Silver Gray

Product Description:
1.High luminous,energy saving.
2.Excellent decoration effect,can select many colors,easy removel,wide application.
3.Long lifespan25000-50000hours,10 times longer than traditional light source.
4.Environmental protection,no lead,halogen and other harmful subatances.
5.Good color redenring index,more real physical color.
6.Excellent thermal dissipation.
7.Easy installation.

Product Details:
CESP IP68 explosion proof LED Filling Station Light With Meanwell HLG Driver

Applications

● ZONE 1 & 2 Hazardous locations ● Oil Refineries & Offshore Oil Platforms
● Locations that Need IP68 Protection ● Power Plants , Chemical Plants
● Gas Stations , Pumping Plants , Substations ● Waste Water Treatment Plants
● Paint Facilities , Coal Mining ,Sewage Plant ● Military Bases, Weapons Storage
● Food & Meat Processing Facilities ● Tunnel Lighting , Airports

Application:
1.Morrisons in England:
CESP IP68 explosion proof LED Filling Station Light With Meanwell HLG Driver

2.Tauernalm Gas Station In Austria Flachau:

CESP IP68 explosion proof LED Filling Station Light With Meanwell HLG Driver Application:

- Apply to gas station, factory, outdoor canopy, retail stores or other places which need anti-corrosion,anti-explosion,dust-proof and water-proof luminaires.
